Smart Box
Digital Comprehensive Effect Device

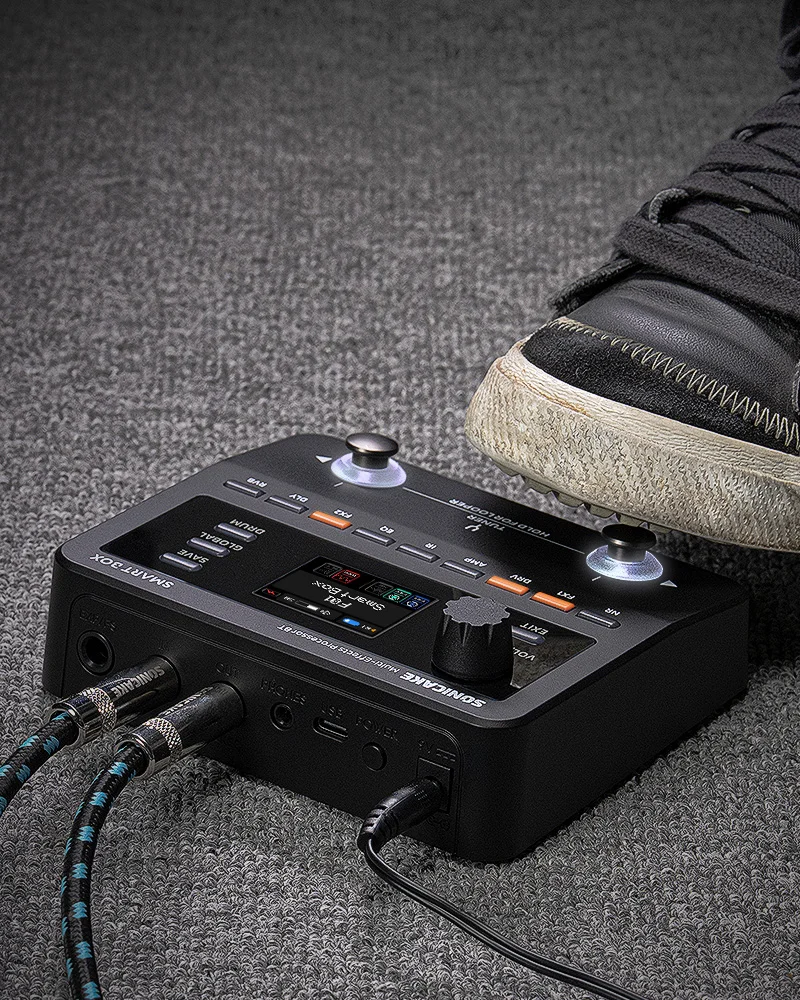

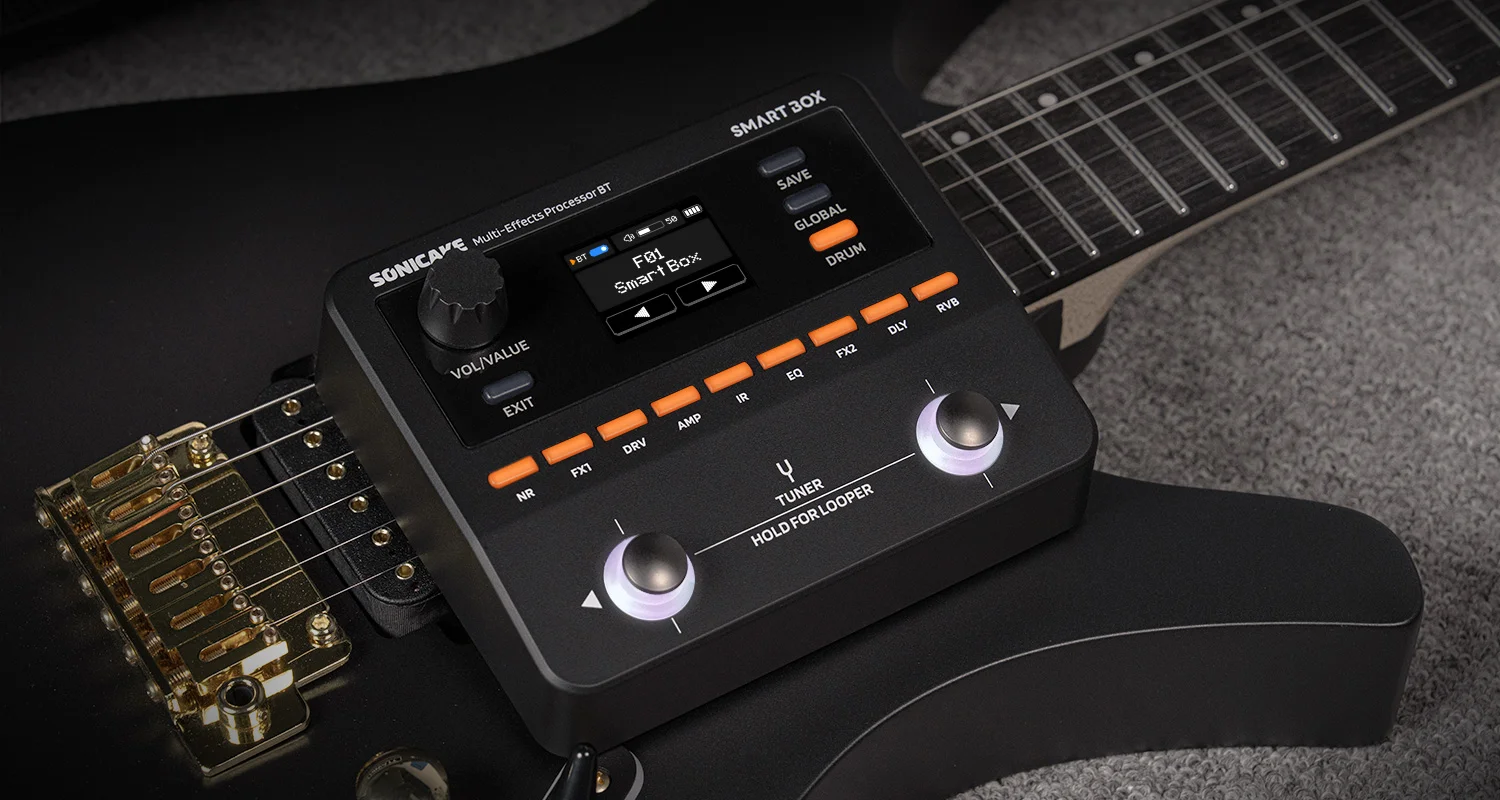

Smart Box is Sonicate’s latest digital synthesizer, based on the proud white box digital modeling technology of the R&D team. Smart Box provides over 130 high-quality effects modeled based on classic speakers and effectors, and also supports loading NAM and enclosure IR files to create more possibilities for sound quality.
While maintaining a portable size to the greatest extent possible, Smart Box combines intuitive information display and quick interactive functions that are conducive to live performances. The high-definition color LCD screen displays preset information, and 9 shortcut buttons display the on/off status of the effect module. You can also press the button to enter the corresponding module and quickly adjust the effect parameters. You can also connect the Smart Box to the mobile app for more precise adjustments. Two specially designed stomping pins not only have excellent foot feel, but also can be controlled by module switches and timed with multi-color light rings, making it convenient for stage performances. The Smart Box also comes with a TRS control expansion interface that supports external emoji pedals or spikes. If that’s not enough, the Smart Box also supports pairing with wireless MIDI devices to expand more control functions and help you perfectly control every performance.
Product Features:
Adopting high-quality white box digital modeling algorithm effects to ensure clarity and dynamic range of timbre, providing professional grade sound performance
Suitable for various instruments such as guitar, bass, and acoustic guitar, factory presets include presets for electric guitar, acoustic guitar simulation, bass, etc.
Multiple timbre and effect presets, with 9 effect modules, more than 130 different effects, and 100 preset positions
Built in complete timbre chain, including preamplifier, box simulation, delayed reverberation and other modules, can simulate the timbre and performance effect of real instruments
Supporting box IR, NAM and other timbre file loading, providing users with a wider range of timbres Select
Built in 20 second phrase loop function
Built in metronome, available through the app 100 different drum machine rhythms can be obtained
The mixing table is paired with a screen display to provide a fast and accurate tuning experience
OTG recording function, which can directly record the instrument’s audio signal to a mobile phone or other mobile device for easy music creation and sharing
2-in-1/2-in-1 USB Audio function, supporting Loopback, Re Amp and other operations
Computer software (Sonic Manager) and mobile app (Soniclink) can easily adjust the tone and set parameters, achieving more flexible and personalized tone control, preset IR and NAM file management
Specially designed metal pedal with light ring, supports single mode control module switch, supports dot speed control
Supports USB MIDI, BT MIDI, can be wired or wirelessly connected to MIDI control devices
Independent control expansion interface, supports external pedals or external pedal pins
Color screen with simple and easy to understand interactive interface

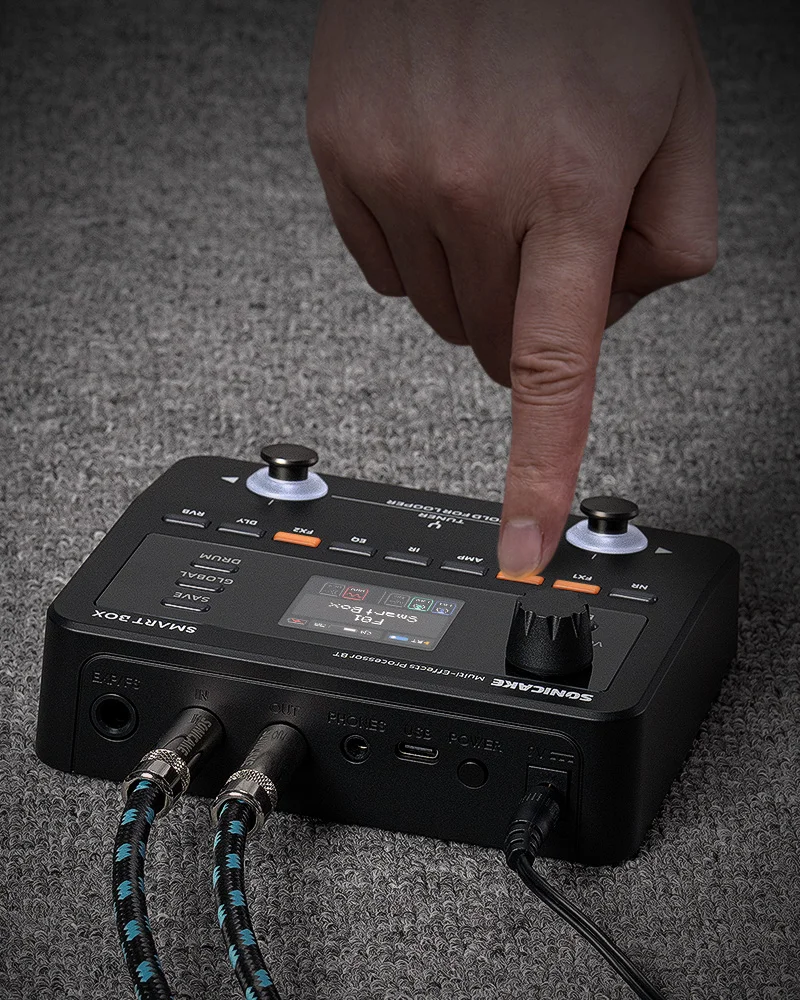

9 module direct buttons, clearly displays effect status, quickly adjusts effect parameters
Stereo output interface, used with built-in true stereo effect
Independent headphone interface, can adapt to most headphones with different impedances
Built in lithium battery
Battery life of over 3.5 hours
Supports 9V DC power supply or USB 5V power supply
Product Specifications:
A/D/A Conversion: 24 bit
Sampling Rate: 44.1kHz
SNR: 103dB
Effect Module: Supports up to 9 Effect Modules
Preset Quantity: 100 Preset Positions, 50 Factory Preset Analog Input Connection
IN Input: 6.35mm (1/4 “) Unbalanced Input (TS) Interface, Impedance 1M Ω
EXP/FS Control Expansion Interface: 6.35mm (1/4″) TRS Interface
Analog Output Connection
STEREO OUT Stereo Output: 6.35mm (1/4 “) TRS Interface, Impedance 1k Ω
PHONES Earphone Interface: 3.5mm (1/8″) Stereo Earphone Output (TRS) Interface, Impedance 22 Ω
Digital Connection
USB Interface: USB2.0 Type-C Interface
Size and Weight Dimensions: 135mm (length) x 114mm (Width) x 51mm (Height)
Weight: 378g
Power Supply
DC Power Requirements: DC 9V External Positive and Internal Negative 5.5 x 2.1mm Interface,>700mA (Minimum Operating Current: 160mA, Charging Current: 700mA)
USB Power Requirements: Type-C, DC 5V,>1A (Minimum Operating Current: 300mA, Charging current: 1A)
Built in lithium battery: 2000mAh, 3.7V
